Question 1 of 40
1. Question
1. What is the decimal value for the fraction shown below?
5/6
-
Question 2 of 40
2. Question
2. What can the formula shown below be transposed to in order to determine the cross sectional area?
R= (p x L) / A
-
Question 3 of 40
3. Question
3. What is the SI unit for length?
-
Question 4 of 40
4. Question
4. What is the SI unit of measurement for density?
-
Question 5 of 40
5. Question
5. What Unit symbol ‘Ω’ is used when recording values of what quantity?
-
Question 6 of 40
6. Question
6. What is the Electro-motive force measured in?
-
Question 7 of 40
7. Question
7. What instrument would be used in order to determine the resistance of a d.c circuit?
-
Question 8 of 40
8. Question
8. What would be the result of comparing the mass of an object on earth and in space?
-
Question 9 of 40
9. Question
9. What is the pivot point of a lever called?
-
Question 10 of 40
10. Question
10. What are machined cogs of different sizes, where one turns another producing different speeds know as?
-
Question 11 of 40
11. Question
11. What is the approximate force exerted on the ground below a mass of 8,6kg?
-
Question 12 of 40
12. Question
12. What is the formula used to determine mechanical power?
-
Question 13 of 40
13. Question
13. What is the approximate energy required to raise a mass of 18kg a distance of 20 m?
-
Question 14 of 40
14. Question
14. What is the efficiency of a motor that produces an output of 3kW when the input is 3.6kW?
-
Question 15 of 40
15. Question
15. What part of an atom orbits around the nucleus?
-
Question 16 of 40
16. Question
16. Which of the following materials is not a good conductor?
-
Question 17 of 40
17. Question
17. What is the resistance of an electrical conductor directly proportional to?
-
Question 18 of 40
18. Question
18. What volume is used to measure resistivity for a given material?
-
Question 19 of 40
19. Question
19. What is the relationship between voltage and current across the resistors for the circuit shown?
-
Question 20 of 40
20. Question
20. What type of circuit would the voltage vary across each resistor but the current remain constant?
-
Question 21 of 40
21. Question
21. What would be the supply voltage for the circuit show?
-
Question 22 of 40
22. Question
22. What would the supply voltage be for the circuit shown?
-
Question 23 of 40
23. Question
23. What would be the supply current (Is) for the circuit shown?
-
Question 24 of 40
24. Question
24. What would be the current that flows through the 20 Ω resistor in the circuit shown?
-
Question 25 of 40
25. Question
25. What is the total circuit resistance for the circuit shown?
-
Question 26 of 40
26. Question
26. What is the total resistance of three resistors connected in series of having a resistance of 20 Ω, 30 Ω and 50 Ω respectively?
-
Question 27 of 40
27. Question
27. Which one of the below shows how the power dissipated by a circuit may be determined?
-
Question 28 of 40
28. Question
28. Which one of the below does not affect voltage drop in a circuit?
-
Question 29 of 40
29. Question
29. What will happen to the conductor temperature when the current passing through it rises?
-
Question 30 of 40
30. Question
30. What would be the effect of placing the north poles of two magnets together?
-
Question 31 of 40
31. Question
31. What is the SI unit of magnetic flux?
-
Question 32 of 40
32. Question
32. How can the magnetic field set-up by a current through a coil wire be reversed?
-
Question 33 of 40
33. Question

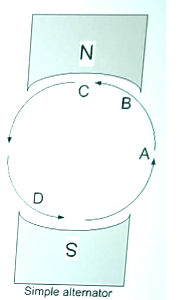

33. At what point in the rotation would the maximum EMF be induced in the image shown?
-
Question 34 of 40
34. Question
34. How long will a single rotation of an alternator intended to provide a 50 Hz supply frequency take to occur?
-
Question 35 of 40
35. Question
35. What would be the value of EMF induced from a simple alternator, having a 0.2m conductor, rotating at a velocity of 20 m/s within a magnetic field flux density of 3 Tesla?
-
Question 36 of 40
36. Question
36. What represents the periodic time in the image?
-
Question 37 of 40
37. Question
37. What electronic component does a dimmer switch use to control the power and light output?
-
Question 38 of 40
38. Question
38. Which electronic component does a central heating boiler use to measure hot water temperature?
-
Question 39 of 40
39. Question
39. Which electronic component is used to store energy?
-
Question 40 of 40
40. Question
40. How many diodes are used in a full wave bridge rectifier?
